Beam spacing

Storyboard

As the beams are being installed, it is observed that they are not in the correct position. Upon noticing this, the person in charge proceeds to correct them, resolving the issue.

This is not a minor problem, as it directly affects the stability of both the roof and the mezzanine, making the correction crucial.

>Model

ID:(135, 0)



Looking at the problem

Description

>Top

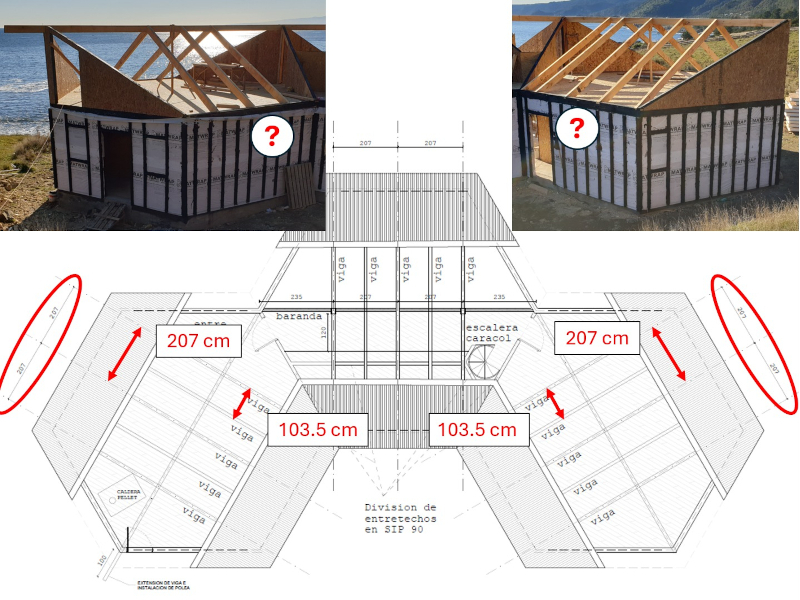

On May 26th, it was observed that the supporting beams are not equidistant, which is concerning as it affects the stability of the structure:

ID:(869, 0)



Correcting the problem

Description

>Top


Upon this observation, the construction manager initiates action to correct the positions:

Subsequently, the company argues that the beams were mounted provisionally and that an adjustment was always planned. However, it is not explained why they were placed in the wrong position. The important thing is that the issue was eventually corrected, as it would have weakened the structure.

ID:(870, 0)
